普通型                                                                                                             落地（步入）型

Outer Shell: made of 1.2mm galvanized steel plate made by Baosteel with surface spraying 75um epoxy powder. Inner Shell: 6mm gray acid
and alkali resistance material special for laboratory, PVC fixation room with 450*330mm door on both sides opens up easily for immediate
access for all maintenance function. Work surface: 12.7mm work surface Physicochemical board that will never rust, chip, or generate particles,
the edge turning downwards Lights: two 30 wart warm white fluorescent lights, SUS stainless lamp base, 5mm foggy surface stiffening glass.
Handle: SUS ¨Ç-shaped handle to avoid airflow disturb. Electrical operation plate: SUS electrical operation plate, touth switch to control power,
lighting, fan and backup power. Airflow plate: 6mm gray acid and alkali resistance material special for laboratory, fixed on the back of the fume
hood, high quality PP special fixer easy for disassemble and cleaning. Electrical power: dust and water proof electric outlet, equiped with one
power distribution box and air switch. Window: 6mm safety and explosion protection glass, non segment balancing device. Wind speed and
noise: above 0.5/sec, 1500-1800 cubic air volume per hour, complying with the requirements.

Assay flume: PP acid and alkali resistance flume with filting and odor blocking function. Assay tap: single port German-made assay tap special for laboratory (optional)
Gas Fitting: Copper-coated and epoxy paint baked to high pressure/acid and alkali/hot resistance, single isolaton operation(optional). Exhaust
fan: the shell and wind wheel being of acid and alkali resistance, 3¦×220V _HP motor by Dongyuan or Datong, PP pipe wind outlet, PP -coated windmill, "_¦×wind pipe.(according
to actual size) Fixed mount: galvanized iron

 Adjustment Foot: 9mm diameter galvanized spiral pole good for isolating vapor and adjustment.

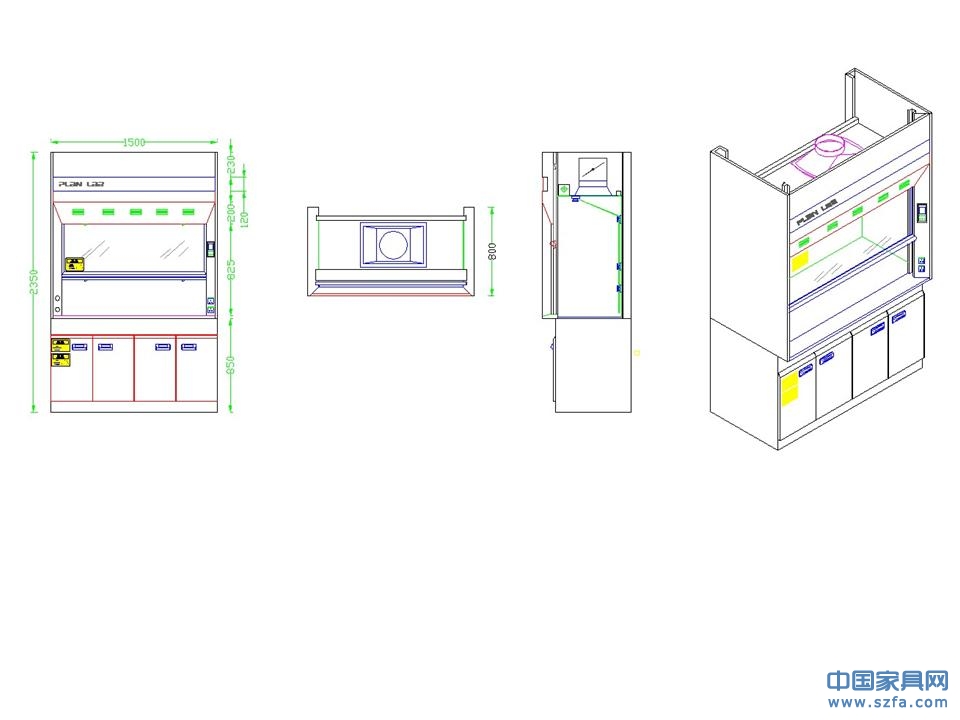

Outside size: W1800/1500/1200*D800*H2350 Inside available work space: W1600/1300/1000*D600*H1190

品牌型號:蘇州博蘭特---型號H-12(數控工藝制作)

尺寸規格:長度Ⅰ1200型/Ⅱ1500型/Ⅲ1800型,深度800mm,高度2350mm,L為落地型/T為特制型,非標尺寸為依照要求制作.

結構說明:普通款通風柜由上柜/臺面/下柜組合而成,落地款為整體結構,桌面款由上柜/臺面組合而成.

臺面說明:采用16mm厚(EPOXY)環氧樹脂臺面,可耐強酸強堿之腐蝕,耐高溫600℃, 或另選臺面(理化板/千思板/陶瓷板/不銹鋼板)臺面位于上柜內.

柜體說明:采用寶鋼產1.2mm厚冷軋?zhí)间摫“?span lang="EN-US" style="margin-top: 0px; margin-right: 0px; margin-bottom: 0px; margin-left: 0px; padding-top: 0px; padding-right: 0px; padding-bottom: 0px; padding-left: 0px; ">(SPCC)數控沖床下料后,數控折彎成型,表面噴涂75-80um奧地利老虎牌(TIGER)戶外抗腐蝕環氧樹脂粉體.顏色可依照潘通色卡定做.

補風板說明:采用寶鋼產1.2mm厚冷軋?zhí)间摫“?span lang="EN-US" style="margin-top: 0px; margin-right: 0px; margin-bottom: 0px; margin-left: 0px; padding-top: 0px; padding-right: 0px; padding-bottom: 0px; padding-left: 0px; ">(SPCC)數控沖床下料后,數控折彎成型,表面噴涂75-80um奧地利老虎牌(TIGER)戶外抗腐蝕環氧樹脂粉體.顏色可依照潘通色卡定做.正面沖有多個補風口.

面板說明: 采用寶鋼產1.2mm厚冷軋?zhí)间摫“?span lang="EN-US" style="margin-top: 0px; margin-right: 0px; margin-bottom: 0px; margin-left: 0px; padding-top: 0px; padding-right: 0px; padding-bottom: 0px; padding-left: 0px; ">(SPCC)數控沖床下料后,數控折彎成型,表面噴涂75-80um奧地利老虎牌(TIGER)戶外抗腐蝕環氧樹脂粉體.顏色可依照潘通色卡定做. 為達到良好的立體感面板上部邊緣部分為倒邊30mm.

內膽說明:采用5mm厚理化板制作,左右兩側設有PP材質檢修門.

導流板說明:采用5mm厚理化板制作,利用專用的PP材質扣件固定于內膽的背板上,可隨意拆卸清洗.

抽風罩說明:抽風罩位于通風柜頂部,為PP材質一次注塑成型,排風口徑為￠250mm.

前門說明:為上下左右移動門,配備無端平衡裝置,門框及軌道采用PVC材質,玻璃為5mm鋼化安全玻璃,門的配重位于通風柜后部,利用304不銹鋼包膠攬繩與前門框連接,每臺通風柜配備6只金屬軸承的塑料滑輪,確保前門上下滑動平穩.(可選配電動門套件).

風速及風量說明:風速為0.6m/每秒以上(前門打開到300mm處),風量為1200-1800立方/小時

風閥說明:為PVC電動防腐風閥.

把手說明:柜門把手采用PP抗腐蝕可插名片型實驗室專用把手.

電源說明:下柜設置86型220V-10A多功能六眼插座一支,上柜設置實驗室專用帶防濺蓋插座兩只.

操作面板說明:操作面板為藍屏液晶文本顯示.開關為點觸式,可控制總電源,風機,照明燈,備用,風閥.

調節角說明:為適應地面平整柜體底部設有為M8螺竿塑料調節腳4只.

配水說明:龍頭為意大利TOF實驗室專用遙控龍頭.排水為意大利TOF實驗室專用PP水杯(選配項).

配氣說明:供氣為意大利TOF實驗室專用遙控氣體考克,可依照氣體種類選擇不同顏色的閥門.(選配項).
